Which Ion do you have?
Ion 1.0 and 2.0 share the same core internals — body, grips, bolt, board, and firing assembly are fully interchangeable between them. The real differences are the regulator, feedneck, ASA, and button style — all visible without disassembly once you know what to look for. XE is the easy one to spot: it's the only one that loads from the back.
Have an Epiphany instead? It's not on this page because there's nothing to confuse it with — magnesium body, sculpted frame, and a completely different trigger make it obvious at a glance. Head straight to its guide.
Advertisement
| Feature | Ion 1.0 | Ion 2.0 | Ion XE |
|---|---|---|---|

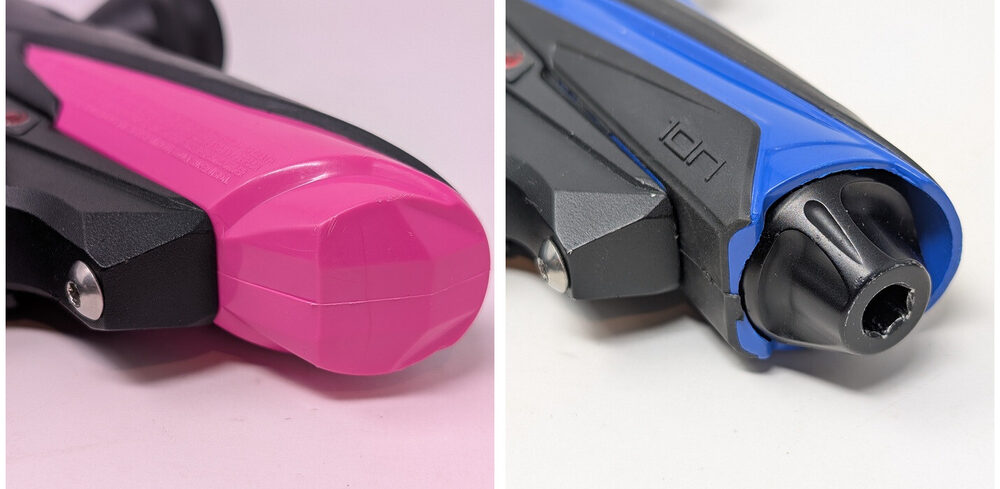

| Bolt loading | Front — full teardown required | Same as Ion 1.0 | Rear — bolt-out-the-back |
| Trigger adjustment | Two set screws — post-travel and magnet | Same as Ion 1.0 | Same as Ion 1.0 |
| Body | Interchangeable body kit | Interchangeable body kit — same system as Ion 1.0 | Own interchangeable kits — don't fit Ion 1.0/2.0 |
| Feedneck | Ion 1.0-style feedneck | Epiphany-style feedneck — different stock part, same thread family as 1.0 | Different thread family (NXT) — doesn't fit Ion 1.0/2.0 |
| Ball detents | Standard wear life | Durable detents, roughly 10x longer wear life | Shares Ion 2.0-era detents |

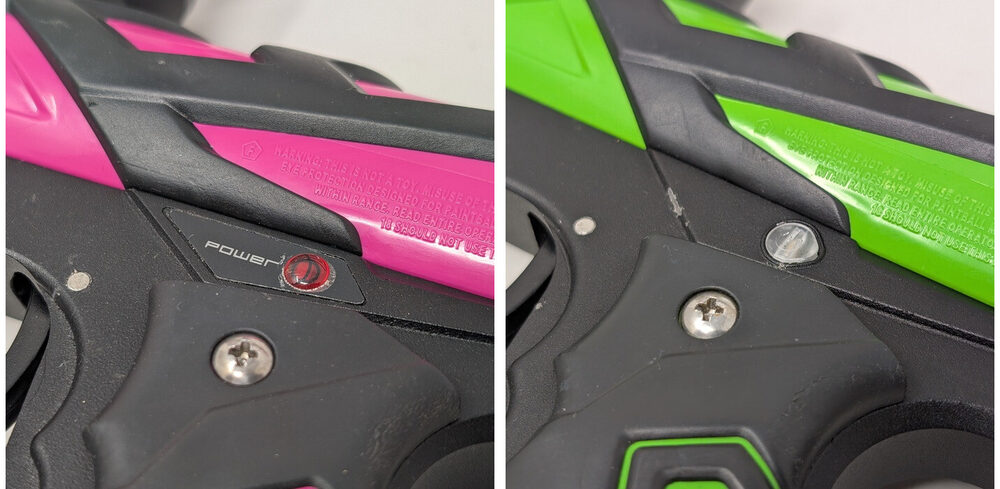

| On/off button | Membrane/sticker button | Clear plastic button | Membrane/sticker button — same as Ion 1.0 |

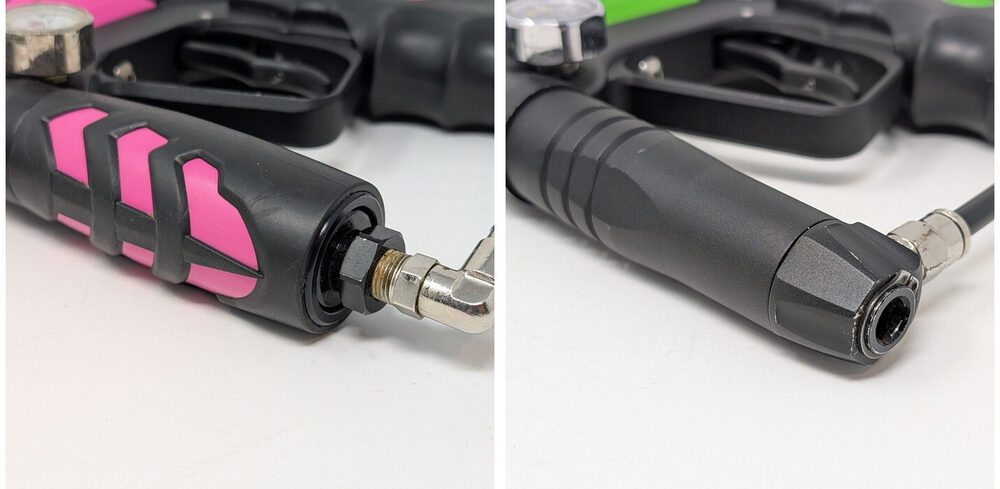

| Regulator | Standard body, 90° fitting | Sleeker body, straight fitting — incompatible with Ion 1.0 regulator covers | Same as Ion 1.0 |
| Air source adapter (ASA) | Standard, 90° fitting | Straight-fitting ASA — different part, but fits Ion 1.0/XE | Same as Ion 1.0 |
| Spool valve & firing assembly | Multi-piece, full disassembly to service | Multi-piece, full disassembly to service | One-piece, bolt-out-the-back — different service procedure, same bolt (different bolt stop) |
