Firing Assembly

This procedure is shared across Ion, Ion 2.0, and Ion XE — the spool valve itself is unchanged across all three generations. Model-specific o-ring sizes are called out in the specs table on each track's page.

Inner body assembly, exploded — from the official Smart Parts Ion manual (Fig. 18)

The Ion’s bolt isn’t just the moving part — it is the valve. As it slides forward to close the body breech, air transfer ports inside the bolt itself open and release pressurized air through it. There’s no separate valve assembly to speak of; the firing assembly (fire chamber, bolt, bolt stop, body breech, and swivel donut) does double duty as both the marker’s action and its valve.

"Firing assembly" vs. "Inner Body Assembly": the official manual's own diagram (Fig. 18, below) calls this the "Inner Body Assembly." I call it the firing assembly instead, to keep it clearly distinct from the Body Cover — the separate outer shell that goes over this whole mechanism, and a completely different part.

Before you start: fully de-gas the marker before disassembling the firing assembly. Dry-fire it until it stops cycling with the air source disconnected. Never work on a pressurized system.

Getting there

This picks up exactly where Teardown leaves off — same disassembly (barrel off, grip open, body separated from the grip frame, Vision board out), same parts already sitting loose once you’re there. Nothing here is reachable with the marker still assembled.

What’s actually new on this page, that Teardown doesn’t cover: pulling every o-ring for inspection and replacement (Teardown’s own bolt/bolt-stop step is a visual check and reseat, not a full rebuild), plus the feedneck and the donut clip/swivel donut — two parts Teardown never touches at all.

What you’ll need

1/8” hex key (also works for pulling a ball detent to inspect or replace it)
Full o-ring kit for your generation (see the O-Rings & Torque Specs page for exact sizes)
Molykote 33 Light (formerly marketed as Dow Corning 33 / “Shocker Lube” / SL33K — same product, current name) — the specifically recommended lubricant. Avoid the Medium formula, gun oil, and Dow Corning 55 grease; none of those are right for these o-rings.
70% isopropyl alcohol (an ultrasonic cleaner works well for a thorough pass), or an aircraft-safe electronics cleaner
Two lint-free cloths — one to clean with, one to set parts on
Snap-ring pliers, sized to fit (only if removing the swivel donut)
A rubber strap wrench (only if removing the feedneck)

Why grease, not oil? The Ion is a spool-valve marker — the bolt slides against the same o-rings on every single shot, so it needs a lubricant that stays put through thousands of cycles rather than wiping off or thinning out. Grease does that; oil doesn't. This is also why oil is the traditional choice on poppet-valve markers and older designs generally (classic Tippmanns, Autocockers, and the like) — their valves don't see that same continuous sliding contact, so a lighter lubricant holds up fine there. If oiling a marker is a habit from something older, it's worth unlearning here.

Avoid petroleum-based solvents and degreasers (WD-40, brake cleaner, etc.) — they break down these o-rings. A brief pass is enough; don't let o-rings soak for extended periods.

Service interval

The bolt assembly is what actually needs regular attention — ideally after every day of play. It’s not just about performance; staying on top of it also keeps future disassembly easier, since grease that’s had time to gum up is what makes bolts seize on removal.

Removal

Unthread the fire chamber from the body breech — it’s simply screwed on, no fasteners involved.
Slide the bolt and bolt stop out together. If they resist, it’s almost always grease buildup, not corrosion — don’t force it.
Separate the bolt from the bolt stop.
The swivel donut, at the rear of the fire chamber, rarely needs removal for routine service — leave it attached unless you’re chasing a specific leak there. If you do need it out: compress and remove the donut clip (CLP004, retaining it) with a properly sized pair of snap-ring pliers, then slide the donut out. Two more o-rings (ORN01570UR) sit underneath it, exposed only once it’s off.

Body breech serial number: Smart Parts stamped a serial number on the body breech itself, front-bottom of the breech, right underneath the barrel — visible on a fully assembled marker, no disassembly required. Removing the barrel improves visibility but isn't necessary to read it. Format varies: most commonly six digits, but a three-digit number preceded by "A," a plain two-digit number, and breeches with no stamped number at all have all turned up too. Worth noting down, especially if you're documenting a restoration.

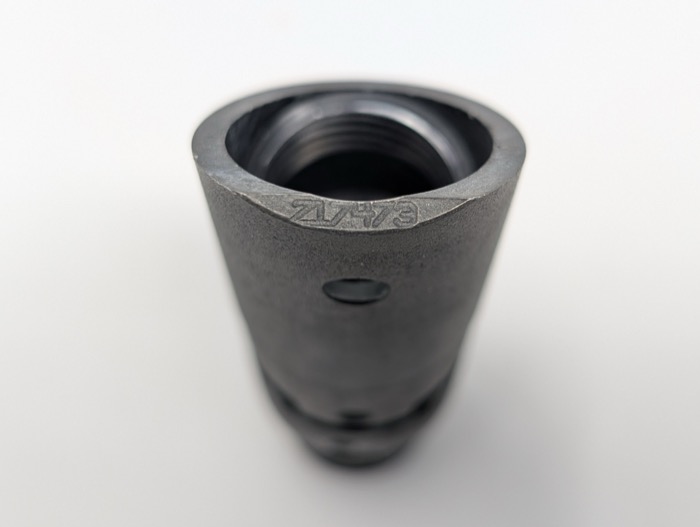

Body breech stamped with a digits-only serial number — Digits-only format

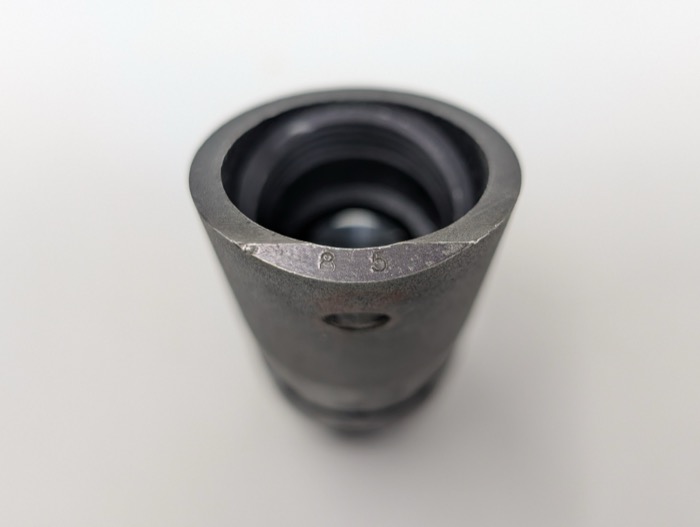

Body breech stamped with a two-digit serial number — Two-digit format

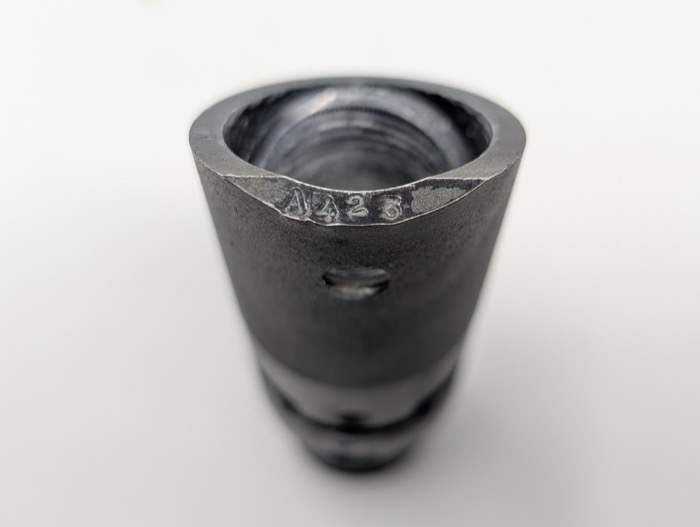

Body breech stamped with an 'A'-prefixed serial number — "A"-prefixed format

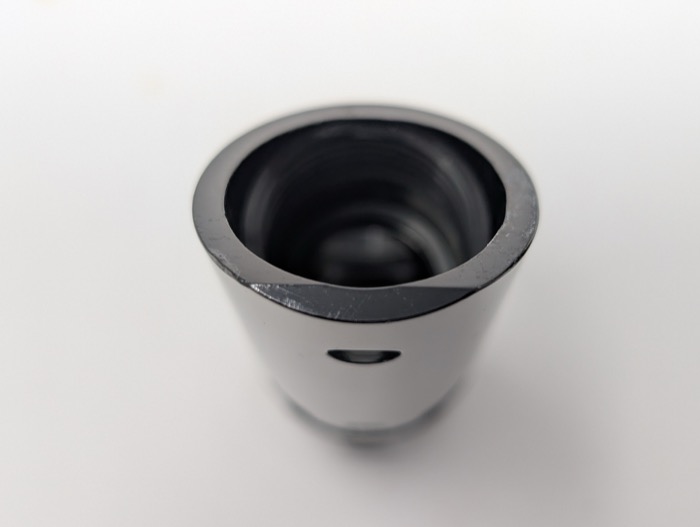

Body breech with no stamped serial number — No stamp

Inspection points

Check every o-ring you can see for flattening, swelling, or embedded debris — this is the actual cause of most “inconsistent velocity” complaints, more often than people expect from a leak they can hear. There are more distinct o-rings in this assembly than it looks like at a glance:

The rear bolt o-ring, on the tail of the bolt, where it seals against the body breech
The bolt bumper and bolt middle o-rings, both on the bolt head — three o-rings total on the bolt itself
Both bolt stop o-rings — there are two different sizes on the same part, not one
The body breech seal, friction, and rear breech o-rings — three more o-rings in the breech itself, separate from the bolt stop o-rings

Exact sizes for each are on the specs page.

How to tell an o-ring needs regreasing, not just reseating: fresh Molykote 33 Light leaves a visible glossy sheen — an o-ring that looks matte or dull, rather than slightly wet, has run dry. Run a finger over it too: it should feel slick, not dry or tacky. If the old grease looks gray or gritty rather than clean, that's degraded grease mixed with debris — wipe it off completely and apply fresh grease rather than adding more on top of it.

Ball detents

While you’re in here, check the two ball detents in the body breech — each one’s tip should extend roughly 1/16” into the body breech. If either falls short of that, replace it. Pry a worn detent out with a 1/8” L-shaped hex (Allen) key — the bend gives enough leverage to angle the short end under the detent and pop it straight out. Fingernails, needle-nose pliers, or an o-ring pick work too if that’s what’s on hand. If a detent is really embedded from paint packed in around it, work the long end of the hex key in from the backside of the detent — from inside the body breech — to loosen it first, then pop it out from within the breech. Press the replacement in with a thumb.

Never look down the barrel or into the body breech of an assembled marker, even while wearing goggles.

Reassembly and greasing

Grease all three o-rings on the bolt itself — two on the head (bumper and middle), one on the tail — plus both o-rings on the bolt stop, liberally enough to fully coat them, but not so much that it globs or squeezes out visibly once seated. Excess grease is what collects debris and causes drag over time, not what prevents wear.

Seat the bolt stop into the body breech with its concave side — shaped like the inside of a cone, per the official manual — facing the back of the marker, and its flat side facing forward. Push it in evenly until it stops. Insert the bolt into the bolt stop/body breech, then thread the fire chamber back on. If the bolt stop doesn’t seat flush, it’s almost always installed backwards or not pushed in evenly on one side.

Common misconception: bolt weight does not affect bolt speed. Speed is determined entirely by how fast the venting air escapes, not the mass of the bolt itself — worth knowing before you spend money on a "faster" aftermarket bolt expecting a speed change from weight alone.

Feedneck

The feedneck threads directly into the top of the body breech. Removal goes easiest with the body already separated from the grip frame (see Teardown) — you’ll want something solid to grip while you work it loose.

Wrap a rubber strap wrench around the feedneck and turn it counter-clockwise, viewed from above. It can take real force to break free the first time — the rubber wrench provides that grip without marring the feedneck’s finish the way pliers or a pipe wrench would. Reinstall by threading it back in clockwise, hand-tight.

Electronics — the solenoid sits directly below this assembly and should be serviced at the same interval, since grease blown back from the bolt during firing is what fouls it over time
Regulator & ASA — pressure setting, rebuild kit install, and ASA removal
Troubleshooting: leaks and inconsistent shooting

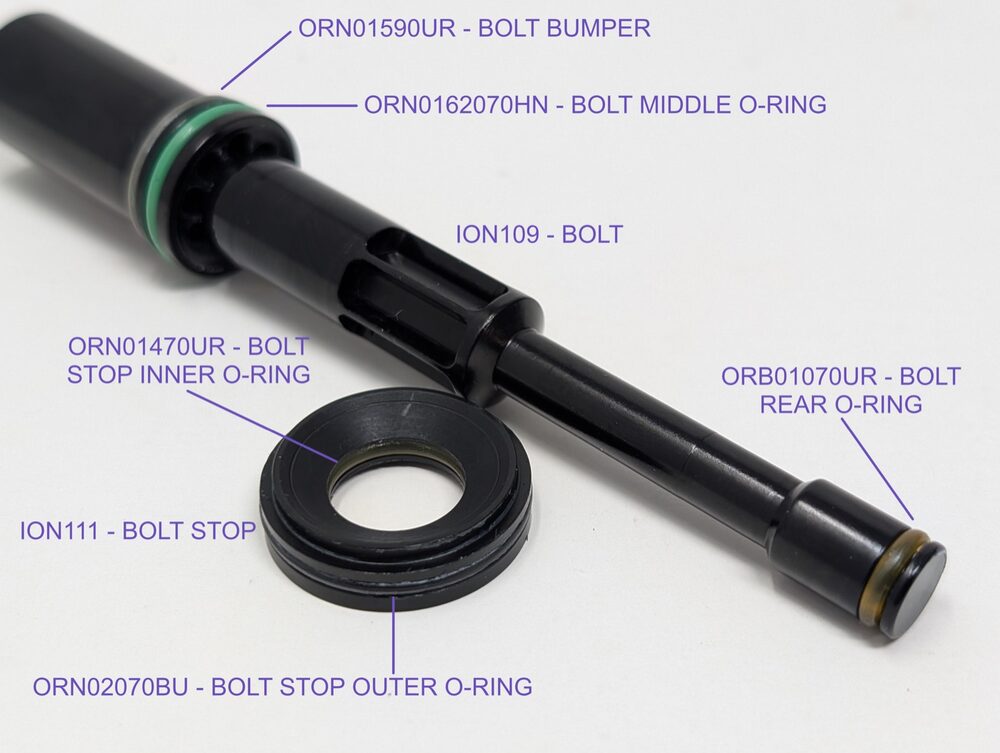

Bolt, bolt stop, and o-ring inspection points laid out
